As additive manufacturing (AM) moves from prototyping into regulated production, the conversation quickly shifts to process validation — and specifically to IQ, OQ, and PQ.
These three stages form the backbone of production validation in medical, aerospace, and automotive industries. However, when traditional validation frameworks are applied directly to additive manufacturing without adaptation, friction often follows.
Additive is not injection molding. It is not machining. And its validation approach must reflect that reality.
Additive manufacturing is frequently classified as a special process, meaning its outputs cannot always be fully verified through inspection alone. Internal structures, layer bonding, and material consolidation cannot be economically evaluated on every part.
Because of this, standards such as ISO 13485 and AS9100 require statistical evidence that the process itself is stable and capable.
IQ/OQ/PQ provides that structured evidence. It shifts confidence away from inspection alone and toward controlled, repeatable process performance.
Installation Qualification confirms that the manufacturing system is properly installed and operating within defined baseline conditions.
In additive environments, this includes verification of machine installation, calibration, environmental controls, software configuration, and preventive maintenance systems. Operator training and documentation procedures are also part of this foundational step.
IQ does not measure part quality. Instead, it establishes that the equipment and supporting systems are configured correctly before process testing begins. For suppliers operating multiple machines, IQ also ensures consistency across the production fleet.
It is the baseline that makes everything else defensible.
Operational Qualification is where additive manufacturing diverges most clearly from traditional processes.
Unlike injection molding — where key process variables are relatively standardized — additive systems contain numerous adjustable parameters. Laser power, scan speed, hatch spacing, layer thickness, thermal controls, and build orientation may all influence part performance.
OQ intentionally tests selected variables at their defined upper and lower limits. Parts produced under these conditions are evaluated against critical-to-quality requirements, such as dimensional accuracy or mechanical properties.
The objective is not simply to pass inspection. It is to determine which variables meaningfully affect output and whether the process remains capable within its defined operating window.
A well-designed OQ narrows the process to the variables that truly matter — avoiding unnecessary scope while capturing real risk.

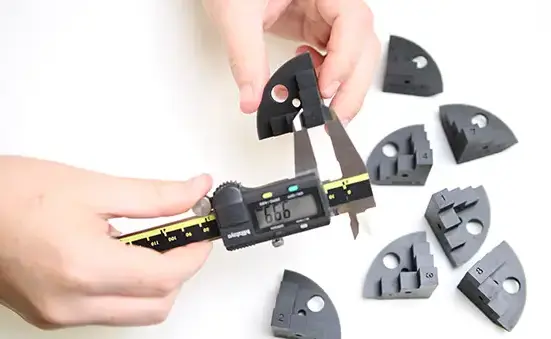

Once acceptable operating limits are established, Performance Qualification shifts focus to consistency.
During PQ, the process runs at nominal settings and a larger sample size is evaluated. This stage is designed to statistically demonstrate repeatability — not just within a single build, but across builds, time, and potentially across machines.
In additive manufacturing, PQ often evaluates dimensional consistency and mechanical performance trends across multiple production lots. Process capability (CPK) is calculated to determine whether the process consistently meets defined tolerances.
PQ answers the question that ultimately matters in regulated production:
Can this process reliably produce conforming parts over time?
Process capability is central to both OQ and PQ decision-making.
One of the most common errors OEMs encounter is applying injection-molding-derived tolerances to additive parts without assessing inherent process behavior. When tolerances are tighter than the process can realistically achieve, CPK values suffer.
Low CPK does not automatically disqualify additive manufacturing. Instead, it prompts a risk-based decision:
Validation should support informed decision-making, not create unnecessary barriers.
Despite the structured framework, additive validation programs frequently encounter avoidable challenges.
One common issue is overscoping OQ. Additive processes contain many adjustable parameters, but not all are critical. Testing every possible variable can quickly make validation economically impractical. A risk-based PFMEA approach is essential to identify which variables truly impact performance.
Another frequent problem is documentation misalignment. Validation templates built for injection molding often do not translate directly to additive manufacturing. Without collaborative scoping between OEM and supplier, expectations can diverge before testing even begins.
Finally, overconfidence in assumed capability — without statistical evidence — can delay production programs. Validation exists to replace assumptions with data.
IQ/OQ/PQ typically applies to process validation, but additive programs may also involve machine qualification or material qualification.
In some cases, the OEM defines prescriptive requirements and expects the supplier to demonstrate compliance. In others, the additive supplier defines how the process will operate and proves capability within that structure.
Clear alignment on ownership and expectations is critical. Without it, validation becomes an exercise in interpretation rather than collaboration.

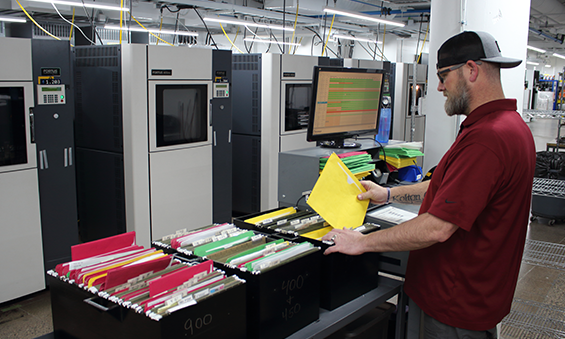

Validation defines how a part must be produced. Traceability proves that it was produced under those validated conditions.
In additive manufacturing, this means linking finished components to machine identification, material lots, parameter sets, operator records, and inspection data. Without traceability, the statistical confidence established during IQ/OQ/PQ cannot be sustained in production.
In regulated industries, validation without traceability is incomplete.
Validation planning should begin during the design phase — not after the part is finalized.
Design decisions directly influence process capability. Geometry, orientation, and tolerance selection all affect validation scope and statistical outcomes. Early collaboration between engineering and quality teams reduces friction later in the program.
When validation is integrated into development, additive transitions to production far more smoothly.
IQ/OQ/PQ is not paperwork. It is the structured pathway that transforms additive manufacturing from an experimental capability into a production-grade process.
When properly scoped and executed, it:
For OEMs scaling additive manufacturing, understanding how IQ/OQ/PQ truly applies — and how it differs from traditional processes — is essential to achieving sustainable production success.
Our engineering and quality teams work with OEMs to define validation scope, identify critical variables, and support statistically sound production readiness. Contact us
