Additive Manufacturing Simulation for FDM Parts:

The Gap No One Talks About

Run a standard FEA stress analysis on a CAD file you are going to print on an FDM 3D printer, and you will get a result: clean contour plots, failure predictions, seemingly reliable. The problem is that almost none of it accounts for how the build process will change the result.

Traditional FEA assumes the part being analyzed is isotropic and homogeneous. That assumption works reasonably well for injection molding, CNC machining, and other conventional manufacturing processes. For FDM 3D printed parts, it is fundamentally insufficient.

An FDM part is a stack of deposited beads, each shaped by the toolpath that laid it down, bonded to adjacent beads through a thermal process that varies across the build volume. The material properties in the direction of bead deposition are measurably different from the properties perpendicular to it.  Infill density, pattern, and orientation all affect structural performance in ways a standard FEA model simply cannot capture.

The common response is a very large factor of safety, often applied to compensate for not considering the toolpaths . Depending on loading conditions, it may be a reasonable approximation, but most often it is not. The factor may be too conservative where weight reduction is a priority, and not conservative enough for failure modes it was never designed to predict. The result is a 3D printed part that is over-designed, heavier, and more expensive than it needs to be. And for load-bearing applications, risk that has not been properly quantified does not disappear just because a safety factor was applied.

Why the Problem Has Persisted

Commercially available FEA software was not built for FDM or 3D printing more broadly. Most dominant simulation tools were developed around conventional manufacturing assumptions: homogeneous materials, stable geometries, predictable process conditions. Progress in powder bed fusion simulation has been meaningful and the reason is instructive. In powder bed fusion systems, the total material in the build chamber remains relatively constant, with only a localized region exposed to the heat source at any given time. That consistency makes it feasible to model residual stresses, distortion, and build failures with reasonable accuracy.

 Several approaches have been tried in both academia and industry, and each runs into a specific wall. Using anisotropic material models and composite laminate theory captures interlayer weaknesses but misses the fine-grained anisotropy from continuously varying contours, raster turnarounds, and changing material orientations. Modeling individual beads is physically accurate in principle but immediately infeasible for any production-sized part — the mesh element count becomes computationally intractable before you even solve the problem of generating a reasonable mesh. Unit-cell based homogenization applies material properties to elements much larger than individual beads, but assumes periodic material structure that FDM actively violates. Contour roads follow part boundaries, infill patterns change direction at walls, raster turnarounds create locally distinct orientations, and sparse infill regions behave nothing like dense ones. The homogenized property assigned to any element is at best an average, and at worst assigns confidently wrong properties to the boundaries, stress concentrations, and thin walls most likely to govern failure.

Each approach shares the same root failure: treating the toolpath as an afterthought rather than as the primary input. The result is approaches that are either too expensive or grossly inadequate — and an industry that has compensated by printing more test parts, applying larger safety factors, and accepting over-designed components. That workflow is acceptable for prototyping. It does not scale to production applications where part weight, material cost, and performance qualification matter.

As trust in FDM for structural applications decreases, engineers become less willing to specify it for production parts — which further reduces the incentive to invest in better simulation tools. The cycle continues.

The result is a missed opportunity. FDM 3D printing has clear potential for tooling, fixtures, brackets, and structural production-support applications where lighter weight, lower cost, faster lead times, and design flexibility create meaningful advantages over conventional manufacturing. Without simulation tools engineers can trust, those advantages go unrealized.

What Trustworthy FDM Simulation Actually Requires

The problem is specific, and so is the solution. To accurately predict the mechanical behavior of a 3D printed FDM part, simulation needs to account for things that traditional FEA simply ignores: the direction each bead was deposited and how that affects stiffness and strength, the infill pattern and density across the part, the validated material properties specific to the printer and slice height being used, not generic datasheet values, and critically, the speed to make simulation a practical step rather than a gate that gets skipped.

That last point matters more than it might seem. Complex FEA simulations can take many hours on high-performance hardware. If it is faster to simply print a test part and physically test it, that is what engineers will do. A simulation tool that cannot return results faster than the physical alternative will not change engineering behavior, regardless of how accurate it is.

All the information needed for a physics-accurate FDM simulation exists in one place: the toolpath data generated by print preparation software. The toolpath knows exactly where every bead was deposited, at what orientation, with what infill pattern. It is the most complete description of the as-manufactured 3D printed part that exists. The question has always been whether simulation tools would use it.

What NoviPath Changes

NoviPath inverts the assumptions that failed prior approaches. Rather than starting from CAD geometry and trying to incorporate bulk material properties resulting from the FDM process, it starts from the toolpath itself: the only source that carries both the geometry and process information needed to assign accurate directional material properties at every point in the part.

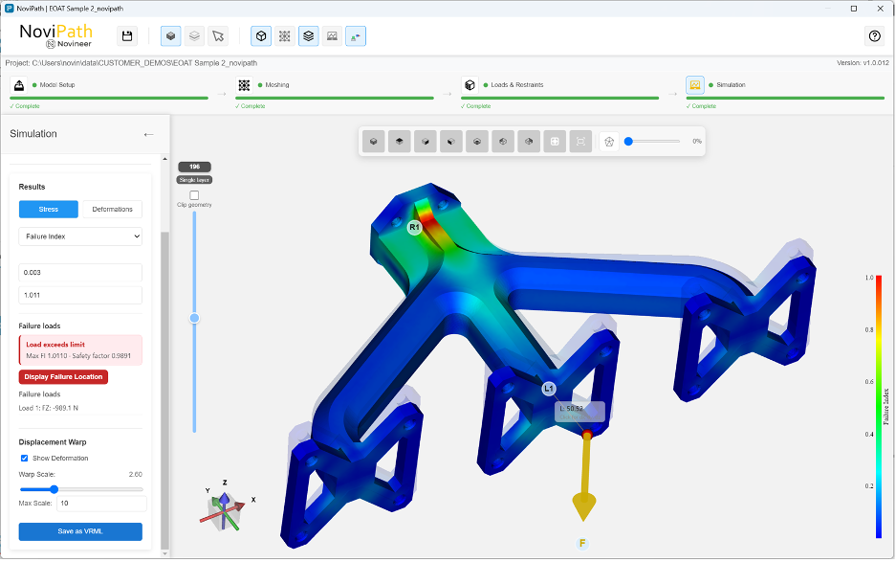

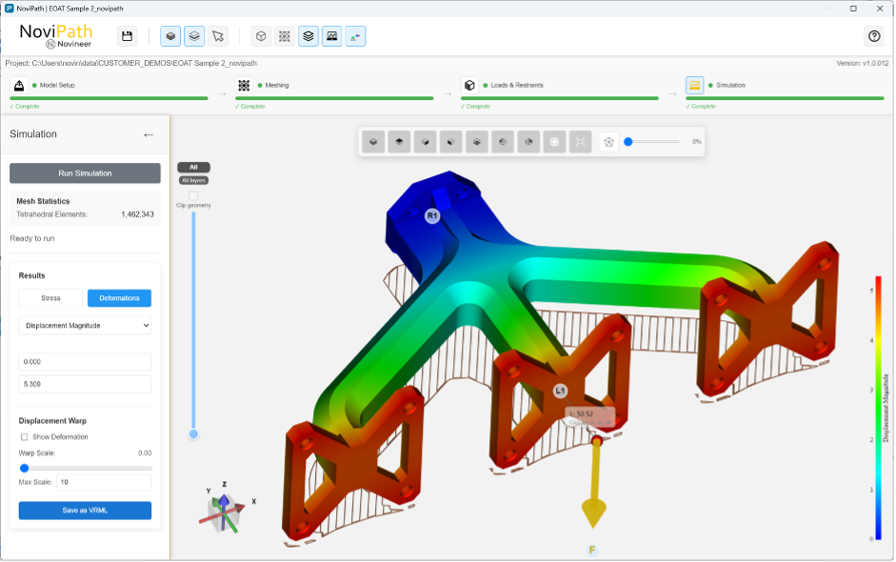

Novineer's FDM simulation engine integrated into GrabCAD Print Pro, reads the actual GrabCAD toolpath data incorporating build orientation, layer height, layer direction, and infill patterns alongside material-specific properties, and builds a physics-accurate model of the part as it will be 3D printed. The simulation reflects the part as it was built, not a grossly simplified version of it.

The technology is built on three core components, each addressing a specific limitation of prior approaches.

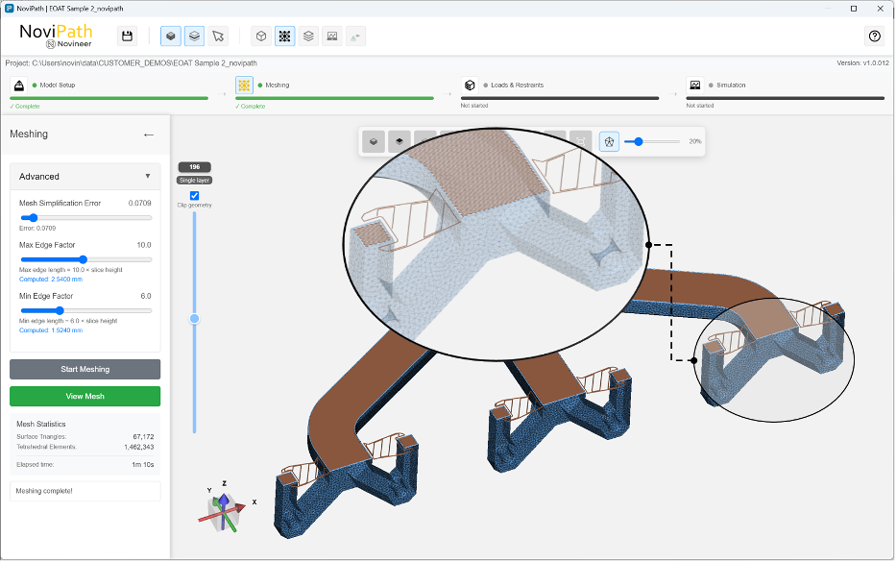

• Toolpath-aware material property mapping algorithms replace the periodic material assumptions of homogenization with properties derived directly from actual deposition geometry.

• Optimized finite element meshing strategies eliminate the need to mesh individual beads — resolving the computational infeasibility of bead-level modeling — while maintaining accuracy at the part scale.

• Empirically validated failure criteria replace the generic isotropic failure assumptions that laminate and homogenization approaches rely on.

Combined with a rigorous material characterization methodology covering 18 individual mechanical properties per material, slice height, and printer, the result is a model that reflects how the part was actually built rather than how it was idealized.

Novineer has shown that NoviPath can simulate parts roughly the size of the F900 build sheet (406mm x 470mm) in less than 10 minutes using less than 8GB of RAM on commodity hardware (in this case Intel® Core™ 7 240H (2.50 GHz) with 16GB installed RAM and 10 physical CPU cores). The accuracy of these models compared to physical experiments falls between 5-18%. Details to follow in upcoming Technical Whitepapers.

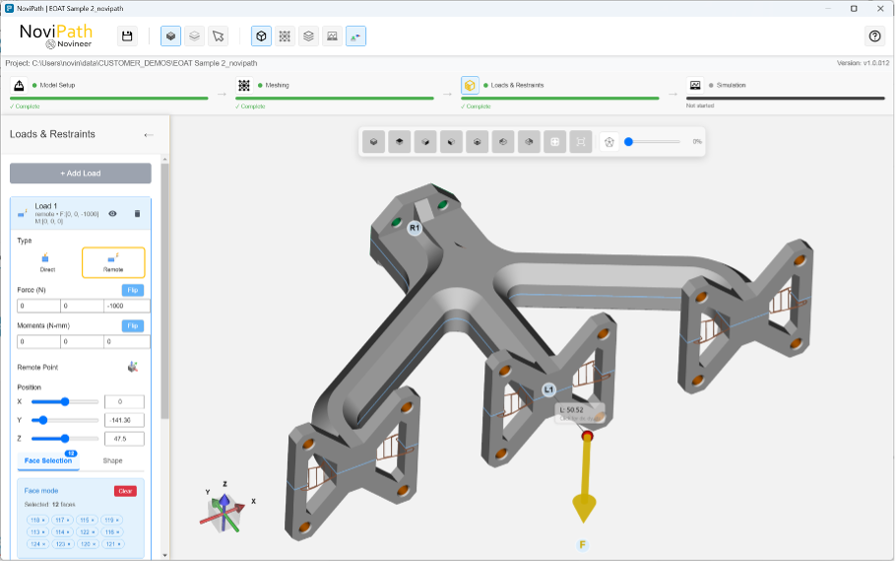

Speed, accuracy, and validation are integral to the architecture — not afterthoughts.  NoviPath is designed to return accurate results fast enough to make simulation a practical step in the design loop. An engineer can adjust build orientation, change raster angles, or add contours, run the simulation, and see the structural impact without leaving GrabCAD Print Pro and without rebuilding the model. Iteration that used to take days compresses to hours. Physical test prints for design iteration are no longer required, which reduces material use, build time, and cost on every cycle.

The validated material library at launch will cover Antero 800NA, FDM Nylon 12CF, and ULTEM 9085, with initial printer support for the F900, Fortus 450mc, and F3300. Material data is derived from rigorous coupon testing calibrated to specific printers and slice heights. On an automotive assembly line riser, Novineer showed weight reductions of up to 35%  while maintaining required safety factors, with validation time dropping from weeks to hours.

The applications where this matters most are exactly those where FDM 3D printing has been held back: load-bearing tooling and fixtures, structural manufacturing aids, brackets in aerospace programs, medical device components requiring performance qualification. In each case, the barrier was not the print technology. It was the inability to demonstrate with engineering confidence that a specific part, built a specific way, would perform under a specific load. That is a modeling and simulation problem, and it is now solvable.

The Broader Shift

There is a longer trend worth naming here. The FDM industry at large, and Stratasys in particular, has spent more than two decades demonstrating it can produce consistent, reliable parts. The materials are well-characterized. The process controls are mature. The remaining barrier to broader adoption in structural production applications has not been the hardware, it has been the engineering rigor and confidence needed to justify using FDM where performance matters.

Closing that gap changes what engineers are willing to design. Engineers who trust their FDM simulation stop constraining designs to what could just as easily be machined or injection-molded. They start designing parts that can only be 3D printed geometries that take full advantage of what additive uniquely enables. 3D printers have already demonstrated they can produce reliable, complex parts at production scale. The design capabilities that become available when simulation removes the uncertainty are substantial.

That is the shift this work is aimed at. Not a better safety factor. Not a faster way to approve a design that was already over-built. A simulation approach that speaks FDM's language and gives engineers the confidence to use additive manufacturing for what it is capable of.
