ST-130

FDM Composite Molding Material

ST-130
Make Composite Molds for Hollow Core Parts.

ST-130 is a soluble 3D printing material. It’s main use is for making sacrificial 3D printed composite tools for hollow core parts like tubes, manifolds and ducts. The dissolvable ST-130 filament is printed to form a mold in the shape of the final desired part. The composite material is then wrapped around the mold and cured. After cure, the part and mold are immersed in a solution bath, dissolving the ST-130 sacrificial material, leaving the finished hollow composite part.

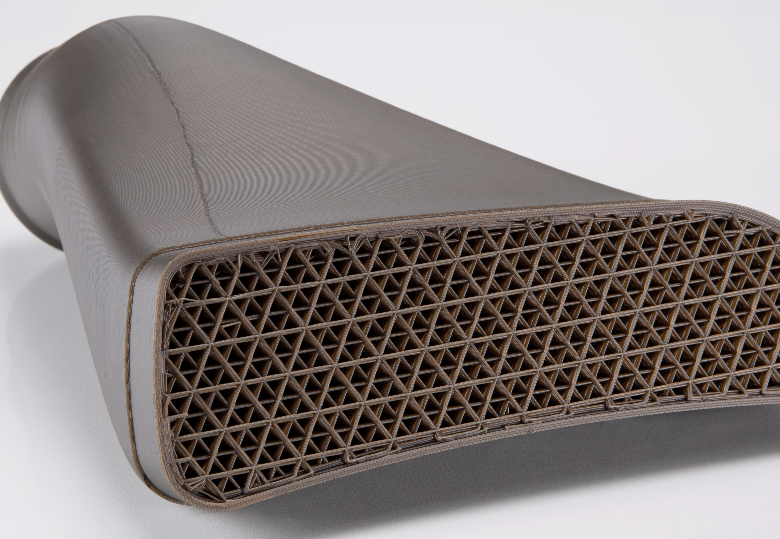

ST-130 is capable of autoclave cure and is typically used with a standard triangle fill pattern to promote fast dissolution, optimize build speed and conserve material. It’s particularly advantageous for making complex hollow composite shapes, which would normally require multipiece clamshell molds that produce seams in the part. Molds made with ST-130 let you create seamless, single-piece parts in one lay-up operation.

Typical applications


Tooling

Molds for hollow composite parts.

Performance properties


Temperature

90°C (210°F)

izod impact.png

Pressure

62 kPa (90 psi)

Compatible Printers


Fortus 450mc

Leverage the versatility of being able to print using multiple FDM materials with the Fortus 450mc printer.

Learn More

F900

For big parts, large print jobs or a combination of both, rely on the F900, compatible with most Stratasys FDM thermoplastics.

Learn More

Downloads

ST-130 product data sheet

Download

ST-130 safety data sheet

Continue to safety data sheet
