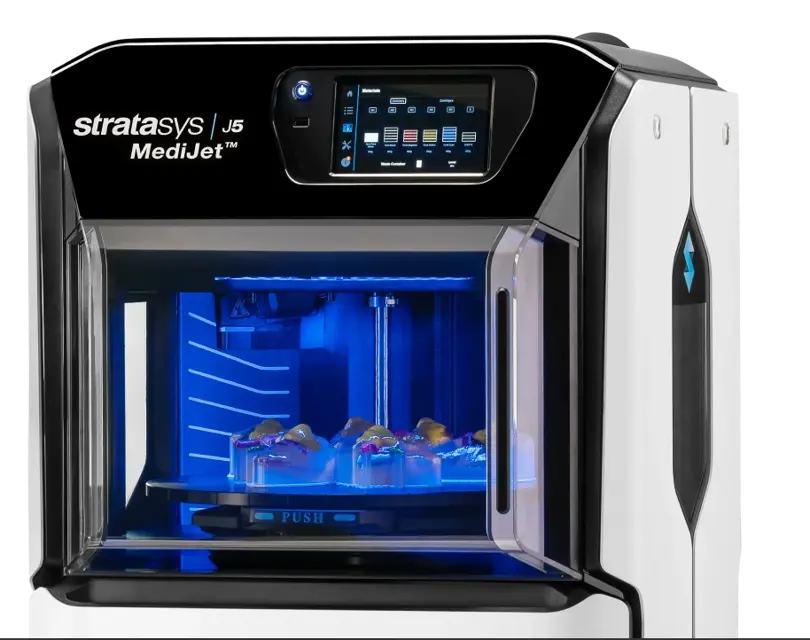

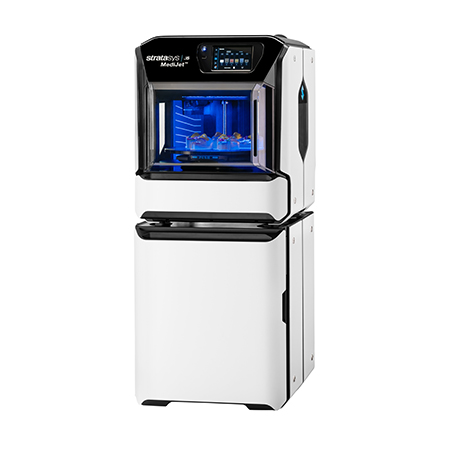

J5 MediJet® 3D Printer

The J5 MediJet™ is designed for hospitals, academic medical centers, and medical device companies that need an all-in-one medical 3D printing solution. It supports patient-specific anatomical models, surgical planning, physician training, surgical guides, and medical device development with accurate, multi-material PolyJet™ printing.

The J5 MediJet™ features a build area of 1,174 cm² with a maximum part size of 140 × 200 × 190 mm (5.51 × 7.87 × 7.48 in.). Its rotating build platform allows users to print multiple anatomical models simultaneously while reducing handling and improving production efficiency.

The J5 MediJet™ supports biocompatible transparent and opaque materials, Digital ABS Plus™, Elastico™, Vero™ rigid color materials, DraftWhite™, and ToughONE™. It prints multiple materials simultaneously and supports over 500,000 color combinations for realistic anatomical models, medical visualization, and device development.

The main difference between the J5 MediJet™ and the J5 Digital Anatomy™ is their intended applications. The J5 MediJet focuses on medical models, surgical guides, education, and product development with multi-material color printing. The J5 Digital Anatomy adds specialized Digital Anatomy™ materials that replicate the mechanical properties of tissue, bone, and blood vessels for procedural simulation and device testing.

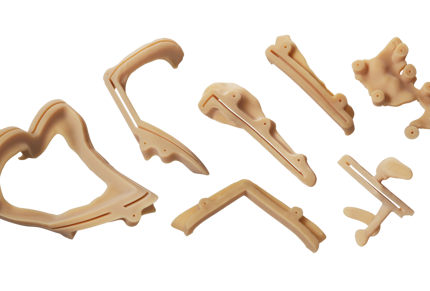

Yes. The J5 MediJet™ supports selected biocompatible PolyJet materials tested according to ISO 10993 standards. Depending on the material and application, approved materials support Steam, Gamma, Vaporized Hydrogen Peroxide (VHP), and Ethylene Oxide (EtO) sterilization methods.

Yes. The J5 MediJet™ supports workflows using approved third-party 510(k)-cleared segmentation software for clinical diagnostic imaging, surgical planning, and surgical guide production. This compatibility helps healthcare providers integrate medical imaging into validated 3D printing workflows.

The J5 MediJet™ prints layers as fine as 18 microns and delivers ±150 micron dimensional accuracy for smaller rigid parts. This precision enables highly detailed anatomical models, surgical planning models, and medical components with excellent visual fidelity.

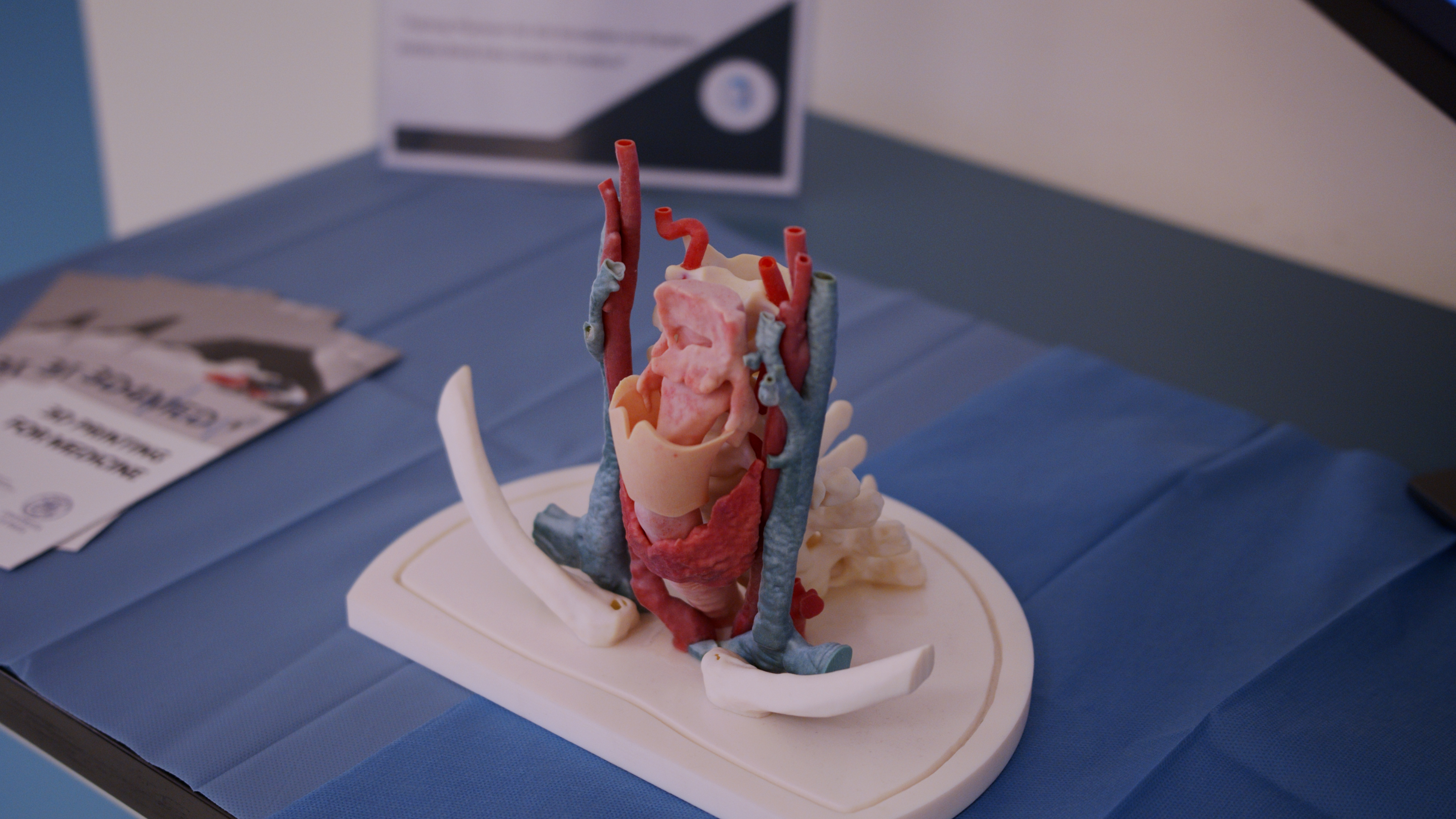

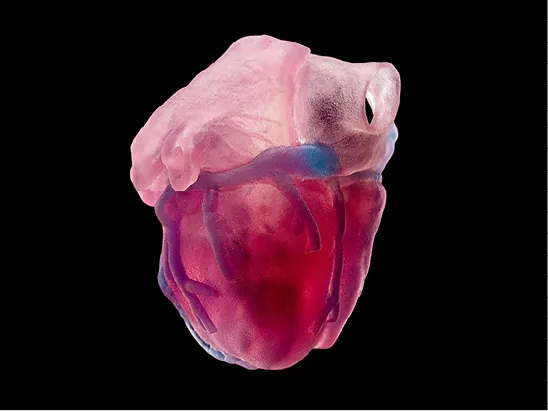

Yes. The J5 MediJet™ prints multi-material, full-color anatomical models with realistic transparency and tissue differentiation. It supports over 500,000 color combinations, enabling highly detailed patient-specific models for surgical planning, physician education, and medical visualization.

The J5 MediJet™ supports workflows using ISO 10993-tested biocompatible materials and compatible 510(k)-cleared medical imaging software. Stratasys manufacturing sites that produce medical products operate under ISO 13485 quality management systems, supporting regulated medical manufacturing workflows.

Yes. Medical device companies use the J5 MediJet™ for product development, device testing, physician education, and sales demonstrations. Patient-specific anatomical models help evaluate devices under realistic clinical conditions while reducing the storage, ethical, and variability challenges associated with cadaver and animal models.

The J5 MediJet™ can significantly reduce reliance on cadaver labs by producing realistic, patient-specific anatomical models for physician training and surgical education. These models provide repeatable, accessible, and cost-effective alternatives for many planning, training, and educational applications while improving model availability and consistency.
