Learn how Daikin Applied works with Stratasys technology to remain a world-leading provider of air conditioning and heating systems.
Customer profile.
Established in 1924, Daikin Applied is a world-leading provider of
air conditioning and heating systems for residential, commercial and
industrial properties. With over 100 production facilities worldwide,
Daikin employs leading technologies like additive manufacturing to
create solutions that improve air comfort and quality.

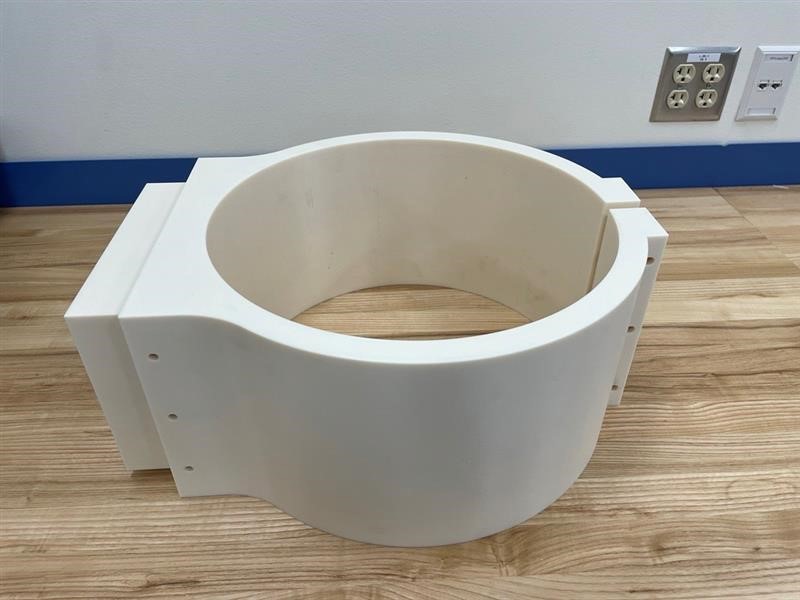

Nozzle Clamp
Challenge.
One of the Daikin test chambers uses a nozzle to direct airflow into the chamber. However, the process to open and close the nozzle was a time-consuming part of the test procedure. Engineers designed a solution to attach a closing mechanism to the nozzle using a large clamp. This would reduce labor during test but the clamp was never manufactured due to the high cost of machining the large part from aluminum stock.
Solution.

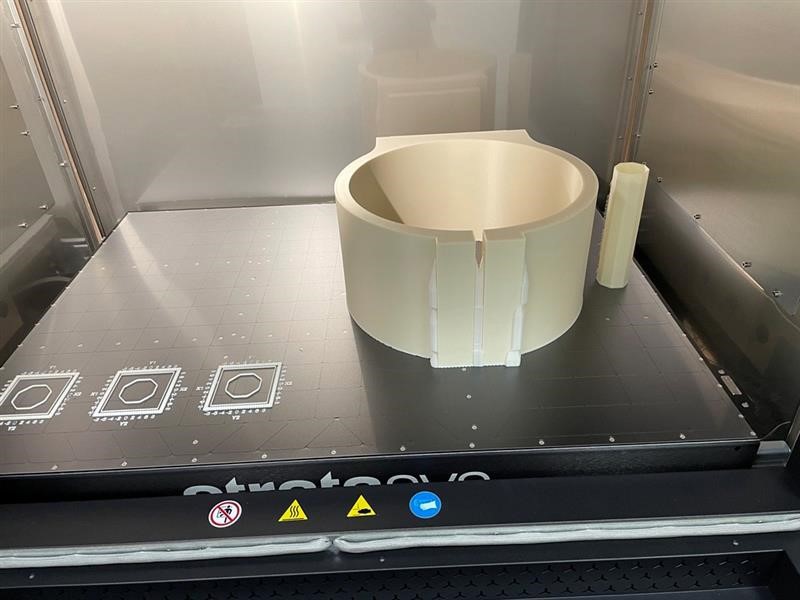

With the procurement of a large-format F770™ FDM® 3D printer,
Daikin engineers printed the clamp as an alternative to machining.
The F770’s large build chamber offered sufficient size to make the
large part, providing an economical solution. The clamp was made
using ASA thermoplastic and a hexagram infill for a strong but
lightweight construction.
Impact.
3D printing the clamp with the F770 gave Daikin the ability to
permanently change the test procedure and speed up the test
process, which has long-term benefits. Additionally, the 3D printed
clamp was produced in hours and cost approximately $500
compared to $8000 to machine it from aluminum, a savings of 93%.
