Manufacturers had traditionally to choose between the proven performance of molded silicone and the design freedom, speed, and iteration advantages of 3D printing.
P3™ Silicones remove that tradeoff by enabling functional silicone parts to be printed directly on Origin systems without conventional tooling.
Engineered by Stratasys and Shin-Etsu, P3™ Silicones combine the material characteristics of silicone with the accuracy, fine-feature capability, and manufacturing flexibility of the Origin platform.
The result is a family of materials designed for applications where elasticity, durability, surface quality, and long-term functional performance matter.

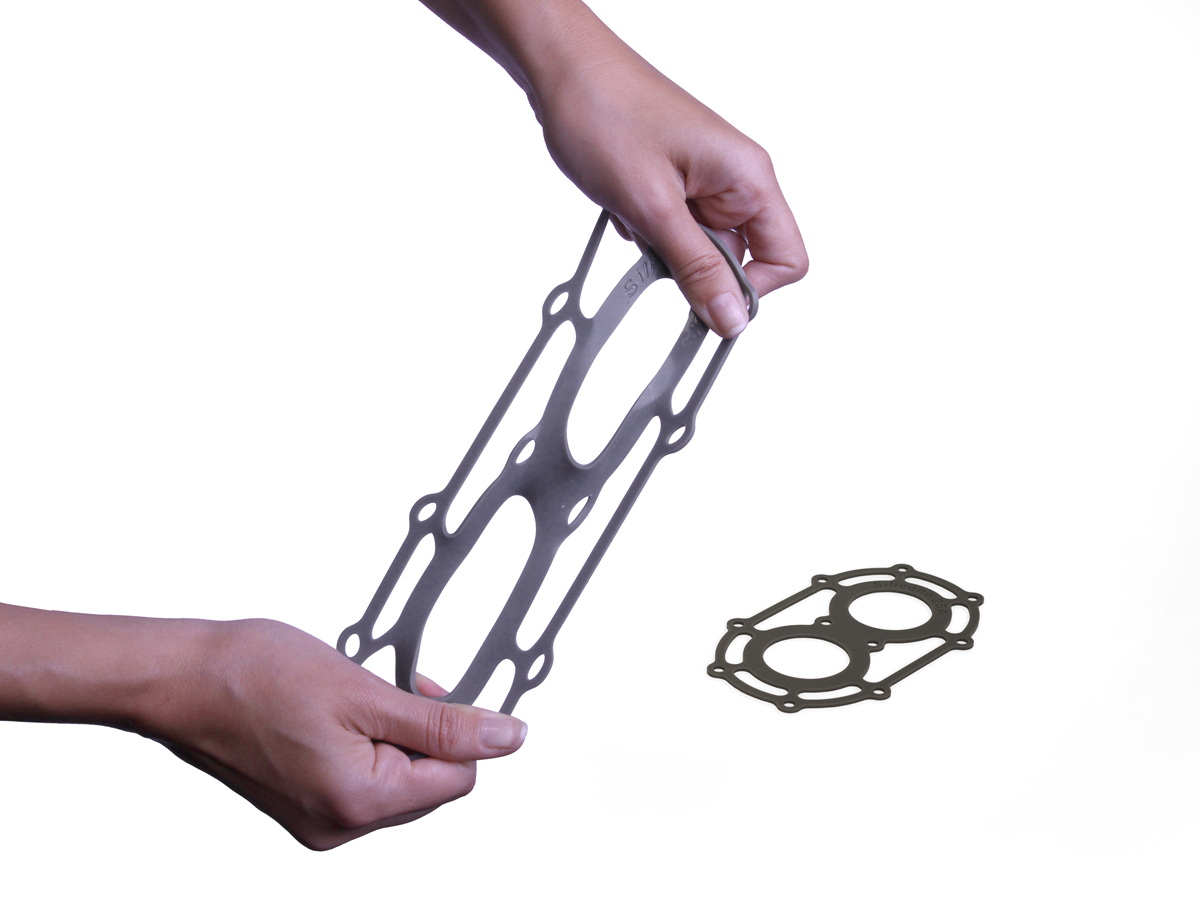

Engineers specify silicone for components that must maintain elasticity, sealing force, and durability through repeated compression, vibration, and environmental exposure.
But initial material properties tell only part of the story. A seal that hardens over time may lose its ability to conform and seal. A flexible component that loses elongation may become more susceptible to cracking or failure. That is why long-term property retention matters.
P3™ Silicones have been evaluated using mechanical, thermal-aging, and compression-set testing to characterize how their properties change under demanding conditions.
Ready to evaluate your own geometry?
Request a benchmark print to assess P3™ Silicone on your design before moving toward production. Contact our Sales representative.
Thermal aging can change the mechanical properties of silicone and other elastomers, directly affecting their functional performance and potential service life.
After 1,000 hours at 150°C (300°F), P3™ Silicone 25A retained substantially more of its original mechanical properties than the alternative commercially available 3D printing silicone tested.
Compression set indicates how well an elastomer recovers after prolonged compression, making it an important consideration for seals, gaskets, O-rings, cushioning, and damping components.
Tested using ASTM D395 Method B protocols, P3™ Silicone 25A and P3™ MED Silicone 25A demonstrate compression-set values of 6% and 7%, respectively. P3™ Silicone 25A also maintains stable compression-set performance following extended thermal aging at 150°C (300°F), including testing after 500 and 1,000 hours.
Both materials offer 25A Shore A hardness, but differ in mechanical properties, color, and application-specific qualifications.
|
Property |
P3 Silicone 25A |
P3 MED Silicone 25A |
|
Applications |
Industrial |
Medical, Consumer |
|
Shore Hardness |
25A |
25A |
|
Elongation at Break |
672% |
835% |
|
Compression Set |
6% |
7% |
|
Tear Strength |
16 ± 3 kN/m |
14.8 kN/m |
|
Tensile Strength |
5.8 ± 2 MPa |
4.4 Mpa |
|
Thermal resistance |
-50ºC ( -58ºF) to +200ºC (393ºF) |
-50ºC ( -58ºF) to +200ºC (393ºF) |
|
Certifications |
FR UL94-V0 at 2.56mm |
Biocompatibility ISO 10993-5, -10, -23 |
|
Color |
Gray |
White |
For complete techinical specifications, view the P3 Silicone 25A datsheet or P3 MED Silicone 25A datasheet

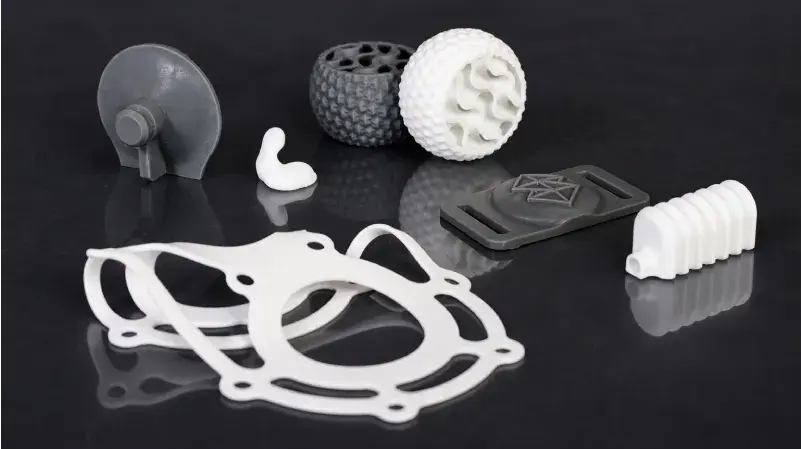

P3™ Silicones combine the material behavior of silicone with tool-free digital manufacturing, making them suitable for functional prototyping, tooling, and production applications.

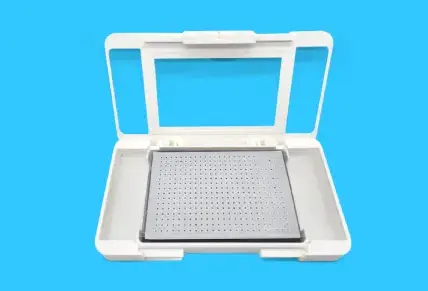

See how customers are using P3™ Silicones to solve real manufacturing and product-development challenges.
Everything You Need to Know about DLP® 3D Printing

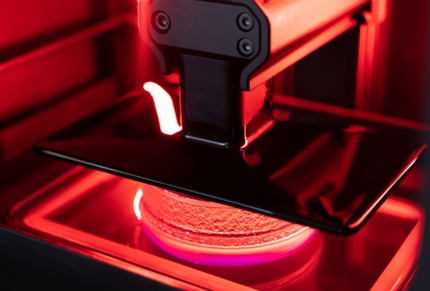

DLP 3D printing uses projected light to cure photopolymer resin, producing parts with excellent accuracy, smooth surface finish, and functional material properties.

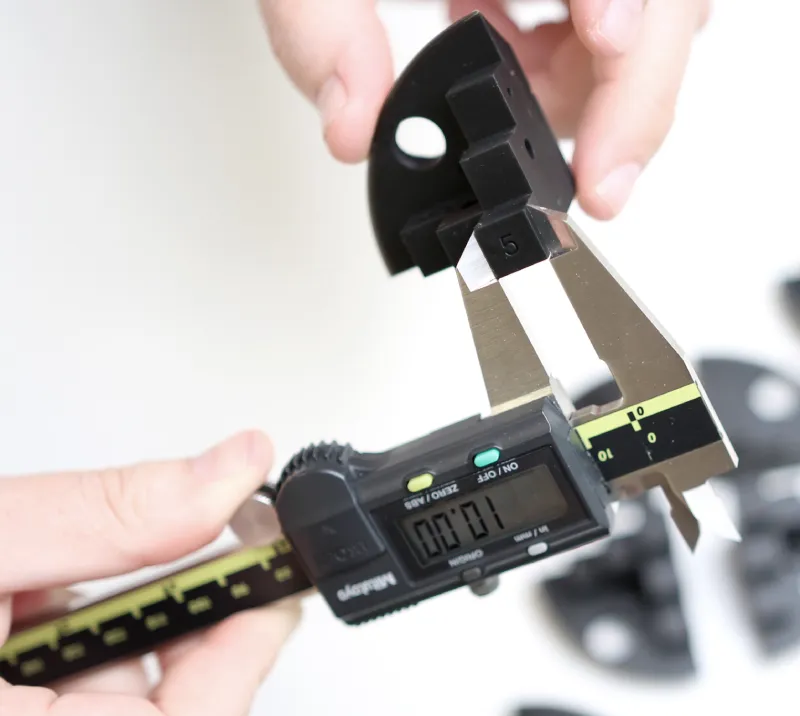

How to Read 3D Printer Accuracy Specs Like a Pro
